How many of you would rock this frame?

Discussion in 'Downhill & Freeride' started by RideRMB, Jan 15, 2008.

  1. RideRMB

    RideRMB Monkey

    Rep/Likes:
    0 / 0
    Joined:
    Aug 29, 2007
    Messages:
    395
    Location:
    'Da Hood

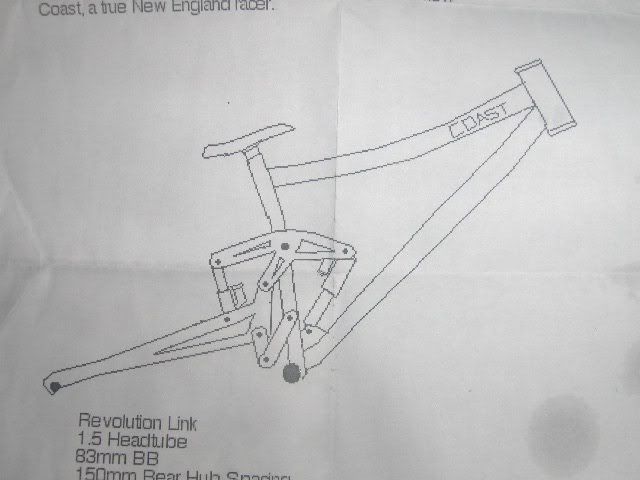

    This is a future thing I'd like to do sometime in a while.

    It's a DH frame with 9-12 inches depending on the final geo/ mount positions.

    64.7 degree HT
    83mm BB
    150mm Spacing
    1.5 Headtube
    I'd have it equipped with a Floating brake but I don't know how it'd fit/ work.

    NOTE: The rearward shock compresses first, then the whole section mounted to the frame pivots like a regular Stinky.




    Please register to disable this ad.

  2. dirttastesgood

    dirttastesgood Turbo Monkey

    Rep/Likes:
    1 / 0
    Joined:
    Dec 12, 2006
    Messages:
    1,517
    Location:
    CT
    I wouldn't.

  3. davetrump

    davetrump Turbo Monkey

    Rep/Likes:
    0 / 0
    Joined:
    Jul 29, 2003
    Messages:
    1,289
    Texas called... they want the their design for a new oil rig back

  4. jamesdc

    jamesdc Monkey

    Rep/Likes:
    0 / 0
    Joined:
    May 6, 2007
    Messages:
    469
    seems too comlicated and 2 shocks is pointless

  5. Transcend

    Transcend My Nuts Are Flat

    Rep/Likes:
    5 / 0
    Joined:
    Apr 18, 2002
    Messages:
    18,062
    Location:
    Towing the party line.
    That is the most absurd thing I have seen this week.

    12" of travel is just stupid.

    Also, how is a 12" travel bike that will weigh a ton and not be very maneuverable a "new england racer"?

  6. Yeti

    Yeti Monkey

    Rep/Likes:
    5 / 0
    Joined:
    May 17, 2005
    Messages:
    877
    Location:
    yeti cave@the beach
    you lost me there...and why 2 shocks?

  7. ZHendo

    ZHendo Turbo Monkey

    Rep/Likes:
    6 / 34
    Joined:
    Oct 29, 2006
    Messages:
    1,534
    Location:
    PNW
    i wouldn't for a few reasons:
    -heavy because of all the linkage and 2 shocks
    -2 shocks makes everything that much more complicated, you'd need to tune it so the first shock would smoothly transition to the next shock, and 12" of travel?
    -it would have like 20 inch chainstays

  8. Lollapalooza

    Lollapalooza Monkey

    Rep/Likes:
    0 / 0
    Joined:
    Jan 22, 2007
    Messages:
    527
    You're going to need ridiculously long stays with the shock mounted there. Check out 2 stage bikes. They have it dialed pretty well.

  9. MDJ

    MDJ Monkey

    Rep/Likes:
    0 / 0
    Joined:
    Dec 15, 2005
    Messages:
    673
    Location:
    San Jose, CA
    Ha. That's exactly what I thought

  10. CrabJoe StretchPants

    CrabJoe StretchPants Reincarnated Crab Walking Head Spinning Bruce Dick

    Rep/Likes:
    88 / 419
    Joined:
    Nov 30, 2003
    Messages:
    11,756
    Location:
    Groton, MA
    I was going to calculate the DOFs of that thing, got a piece of paper, looked at it again, got vertigo, puked in my bucket and left the thread.

    That bottom "scissor link" doesn't need to be there either, with the right coupler curves it could be one solid link.

  11. chriscarleton

    chriscarleton Monkey

    Rep/Likes:
    0 / 0
    Joined:
    Aug 4, 2007
    Messages:
    366
    Location:
    Portland Maine
    how old are you?

  12. norbar

    norbar Turbo Monkey

    Rep/Likes:
    26 / 241
    Joined:
    Jun 7, 2007
    Messages:
    9,257
    Location:
    Warsaw :/
    Well 2stage 2shock stuff actually gets a lot of good results in nz and aus and it's not that hard to set it up. Plus the weight is not insane.

    But still i don't get the idea of 9-12 inches of travel. 7-9 is sufficent mostly plus why do you need 2 shocks in your case? What's the advantage?

  13. SteezyWeezy

    SteezyWeezy Turbo Monkey

    Rep/Likes:
    4 / 0
    Joined:
    Apr 4, 2006
    Messages:
    2,437
    Location:
    portland, oregon
    doodoo

  14. haromtnbiker

    haromtnbiker Turbo Monkey

    Rep/Likes:
    5 / 0
    Joined:
    Oct 3, 2004
    Messages:
    1,461
    Location:
    Cary, NC
    I would if it was free!

  15. FrontRangeDH

    FrontRangeDH Monkey

    Rep/Likes:
    0 / 0
    Joined:
    Sep 12, 2007
    Messages:
    591
    Location:
    15 sq. miles surrounded by reality
    Why 2 shocks? Cannondale did it on some Geminis like 8 or so years ago but it didnt stick, i dont see the advantage

  16. jcook90

    jcook90 Turbo Monkey

    Rep/Likes:
    3 / 0
    Joined:
    Mar 3, 2006
    Messages:
    1,211
    Location:
    Connecticut
    You can get the same result of having those 2 shocks, one set up softer than the other, with a really progressive linkage.

  17. ChrisRobin

    ChrisRobin Turbo Monkey

    Rep/Likes:
    4 / 37
    Joined:
    Jan 30, 2002
    Messages:
    2,909
    Location:
    Vancouver
    hahahaa.. that had me cracking up out loud!

  18. RideRMB

    RideRMB Monkey

    Rep/Likes:
    0 / 0
    Joined:
    Aug 29, 2007
    Messages:
    395
    Location:
    'Da Hood
    I tell you although I'm not sure whether your gonna say I'm skilled or stupid for my age, 13. BTW I'm right down the road from you!

  19. w00dy

    w00dy In heaven there is no beer

    Rep/Likes:
    5 / 22
    Joined:
    Jun 18, 2004
    Messages:
    3,418
    Location:
    that's why we drink it here
    Nice effort, but there's a few things to consider. The first one is chain stretch. That would have a very rearward axle path and the thing wouldn't pedal very well over bumps. Second big thing is the double shock bit. There are a few companies out there with such a thing, but the shocks control wheel travel in different directions. It looks as if both pivot points serve to move the wheel in the same direction. If you're going to add a second shock and all the complexity that comes with it, make sure it's justified. 12 inches of travel is overkill for racing, but the other specs you've got there make sense.
    Don't get discouraged, you're taking interest in this at a young age so you've got a head start on nearly everyone.
    Don't take Trans(conde)cend too seriously. He's known for his harsh tone.

  20. jonKranked

    jonKranked Press Button, Receive Stupid

    Rep/Likes:
    349 / 3,118
    Joined:
    Nov 10, 2005
    Messages:
    51,510
    Location:
    media blackout
    Transcend hates ViciousDHer :(

  21. Stray_cat

    Stray_cat Monkey

    Rep/Likes:
    0 / 0
    Joined:
    Nov 13, 2007
    Messages:
    460
    Location:
    Providence
    Couldn't agree more.

    It's awesome that your starting to work at this stuff young, but starting on a multi-shock-complexity-machine, is a really hard place to start. Try interpreting a more tried-and-true design to your own liking. I think it'd be a more beneficial learning tool. Good luck!

  22. ultraNoob

    ultraNoob Yoshinoya Destroyer

    Rep/Likes:
    0 / 1
    Joined:
    Jan 20, 2007
    Messages:
    4,526
    Location:
    Hills of Paradise
    das skurry

  23. chriscarleton

    chriscarleton Monkey

    Rep/Likes:
    0 / 0
    Joined:
    Aug 4, 2007
    Messages:
    366
    Location:
    Portland Maine
    I was going to say you were a fool, but I kind of feel like a dink now, because when I was 13, there was really no internet message boards to post on, but I was drawing ridiculous frame designs like this in my study hall thinking that I came up with the next FSR linkage or some BS.

    With that being said, if you are serious about designing bikes, take some engineering and physics courses and all that jazz.

  24. NJMX835

    NJMX835 Monkey

    Rep/Likes:
    0 / 0
    Joined:
    Feb 17, 2007
    Messages:
    606
    Location:
    Highland Lakes NJ
    Just curious, were you eating pizza when you drew that?

  25. ROTFLMAO

    ROTFLMAO Monkey

    Rep/Likes:
    0 / 0
    Joined:
    Nov 17, 2007
    Messages:
    363
    Location:
    Maumee, Ohio
    See my user name.

    Seriously though, I did this kind of stuff when I was 13. If you're serious start reading up on suspension designs and how/why they work. Take some mechanical design classes. See where it leads you.

  26. seismic

    seismic Turbo Monkey

    Rep/Likes:
    4 / 0
    Joined:
    Dec 22, 2003
    Messages:
    3,254
    Location:
    South East Asia
    I think I would eventually pass on that frame.....

  27. FCLinder

    FCLinder Turbo Monkey

    Rep/Likes:
    4 / 0
    Joined:
    Mar 6, 2002
    Messages:
    4,403
    Location:
    Greenville, South Carolina
    RideRMB, you are going to get a lot of crap said to you for your design. Mainly because you ask how many people would Rock Your Frame design without it to be a proven DH design. I have to say you may want to think again on the design concept. It’s good to see more people these days dreaming up newer designs. My thoughts are rethink up your design and then ask people what they think or their input to help make it a better design or in your case a design that would work in real Downhill situations.
    Don’t give up man!!!!!!

  28. Ian Collins

    Ian Collins Turbo Monkey

    Rep/Likes:
    5 / 0
    Joined:
    Oct 4, 2001
    Messages:
    1,429
    Location:
    Pacific Beach, San Diego, CA
    nah, i still wouldn't even if you paid me.....

  29. dirtdigger

    dirtdigger Monkey

    Rep/Likes:
    0 / 0
    Joined:
    Mar 18, 2007
    Messages:
    126
    Location:
    N.zud
    maybe it would be ok if you got rid of the rear shock and the short link on the swing arm and run a idler for the chain?

  30. jmvar

    jmvar Monkey

    Rep/Likes:
    4 / 0
    Joined:
    Aug 16, 2002
    Messages:
    414
    Location:
    "It was a funny angle!"
    Pick up a book on Integrated design processes and read a little bit. It will teach you to think about problems, in this case with bicycle design, and show you techniques on how to come up with solutions.

    What is it about todays DH bike that is lacking? What would you (or the market) like to see in a design and characteristics of the bike?

    Cool that you are thinking about this at a young age, keep it up. Try to see if you can do a project at school where you design something in your shop class.

    We had a course in college where the students would design a bike out of PVC. Cheap, easy to make changes, and a great way to get your foot in the door for mechanical design.

    BTW...stop using your design papers as table mats...get a design notebook!!!!!

  31. LMC

    LMC Monkey

    Rep/Likes:
    0 / 0
    Joined:
    Dec 10, 2006
    Messages:
    683
    i think it has potential but just needs refined somewhat.

    2 air shocks is not a bad idea, it could be used to have say 8-9 inches of travel using a 2:1 travel ratio and of course they can be independantly tuned by altering air volume to produce a more progressive/linear ride. kind of like the Foes 2:1 bike with the dual rate spring does.

    if i were you i would re draw the frame removing the paralel linkages that the rear pivot about and replace it with a single pivot. also reduce the travel to a more race worthy amount.

    Its an admirable 1st attempt i think.. especially considering your age..
    if you are serious about wanting to actually make this, get a copy of solid edge/ solidworks and teach yourself how to construct the shapes needed to create the frame. the functions you will need are not hard at all to learn.

    a copy of linkage would be handy too.

  32. ÆX

    ÆX Turbo Monkey

    Rep/Likes:
    4 / 0
    Joined:
    Sep 8, 2001
    Messages:
    4,921
    Location:
    amarillo
    me to , keep at it man, what else is there to do with 2' of
    snow on the ground. pm me for solidworks

  33. Super-man

    Super-man Chimp

    Rep/Likes:
    0 / 0
    Joined:
    Jun 20, 2005
    Messages:
    56
    Location:
    Orem, UT
    Not sure if it's the best design, but don't let anyone discourage you. Keep at it and try some new drafts. Perfect that sucker.

    2 shocks doesn't make sense to me either.

  34. RideRMB

    RideRMB Monkey

    Rep/Likes:
    0 / 0
    Joined:
    Aug 29, 2007
    Messages:
    395
    Location:
    'Da Hood
    The whole idea is that one shock can be really soft for small/medium bumps and the longer shock is more stiff for big bumps/ bottom out forces.

  35. Bldr_DH

    Bldr_DH Monkey

    Rep/Likes:
    4 / 0
    Joined:
    Aug 8, 2003
    Messages:
    768
    Location:
    NO BO CO
    Based on the current suspension technology, you really won't be needing independent small/large bump absorbing shocks.

    I used to do the exact same thing as you -- experiment with designing crazy suspension linkages. The thing you will soon learn is that anything overly-complicated is generally bad. More moving parts, more places for things to go wrong. The next revolutionary suspension design isn't likely to have fifteen linkage plates, three shocks, and so forth -- It will simply be a highly refined version of something already out there. Take the DW Link for example. Tons of other companies have essentially created the same linkage design (look a the old Balfa 2-steps, or an old Canondale) where the rear triangle suspended by two small links from the front triangle. DW simply found (rather, created after a lot of calculation and experimentation) a better implementation of that design.

    With that said, it's never a bad thing to think outside of the box, so keep with it!

  36. Ithnu

    Ithnu Monkey

    Rep/Likes:
    0 / 0
    Joined:
    Jul 16, 2007
    Messages:
    968
    Location:
    Denver
    I'd take it for a ride. Do you have any more thoughts than a quick sketch?

    Ahhh, I just saw that you're 13. You've got the right idea, you want progressive suspension. But now that's being accomplished with changing leverage.

    That doesn't mean you still shouldn't keep coming up with ideas, I've seen what seemed like dumb ideas turn out to actually work when you look at all of them and take the high points of each.

  37. OGRipper

    OGRipper Turbo Monkey

    Rep/Likes:
    6 / 81
    Joined:
    Feb 3, 2004
    Messages:
    9,633
    Location:
    NORCAL is the hizzle
    I think it's got some problems but it's pretty cool to come up with something like that and get it on paper. As you learn more and perhaps eventually actually make frames, I suggest you keep in mind two very important rules: (1) Keep it simple; and (2) Different is not always better.

  38. ÆX

    ÆX Turbo Monkey

    Rep/Likes:
    4 / 0
    Joined:
    Sep 8, 2001
    Messages:
    4,921
    Location:
    amarillo
    another great thing about two shocks is a super low leverage ratio.
    making using air shocks that are availible now w/o over heating them.
    the two shock bike i made they were diff and was hard to tune.
    i would try and keep the ratio the same on both.

    also makes a good freeride layout b/c you can lock out one
    and instantlly reduce your travel by half for xc stuff.

    alex

  39. Loozinskin

    Loozinskin Monkey

    Rep/Likes:
    0 / 0
    Joined:
    Jul 9, 2005
    Messages:
    172
    Location:
    Bellingham,WA
    who's going to XC on that?

  40. khoolhandz

    khoolhandz Chimp

    Rep/Likes:
    0 / 0
    Joined:
    Jul 27, 2006
    Messages:
    89
    Location:
    I LOVE SURREY
    I'm sure if DW came up with that linkage, everyone here would be ogling on it.

    Don't let these clowns here discourage you, in theory your linkage may work.

    Would I rock it? NO. Would I want to try it? Heck ya.
